Dust Medusa 4-Way Splitter — 4 to 2-1/2 in, Translucent

Connect up to four hose runs to one main dust collection line. This translucent Dust Medusa splitter has one nominal 4-inch connection and four nominal 2-1/2-inch branches. Use the four included caps to cover unused branches. There are no built-in blast gates.

Check the fit

Flexible hoses fit over the ports. Their approximate outside diameters are 4 inches at the main connection and 2.5 inches at each branch. Measure your hose inside diameter and check the connection style before ordering. Branch openings are approximately 2.3 inches inside diameter; compare actual mating dimensions for rigid shop vac cuffs or other fittings. Common size labels alone do not establish a fit. Hoses, clamps, blast gates and additional adapters are sold separately.

What’s included

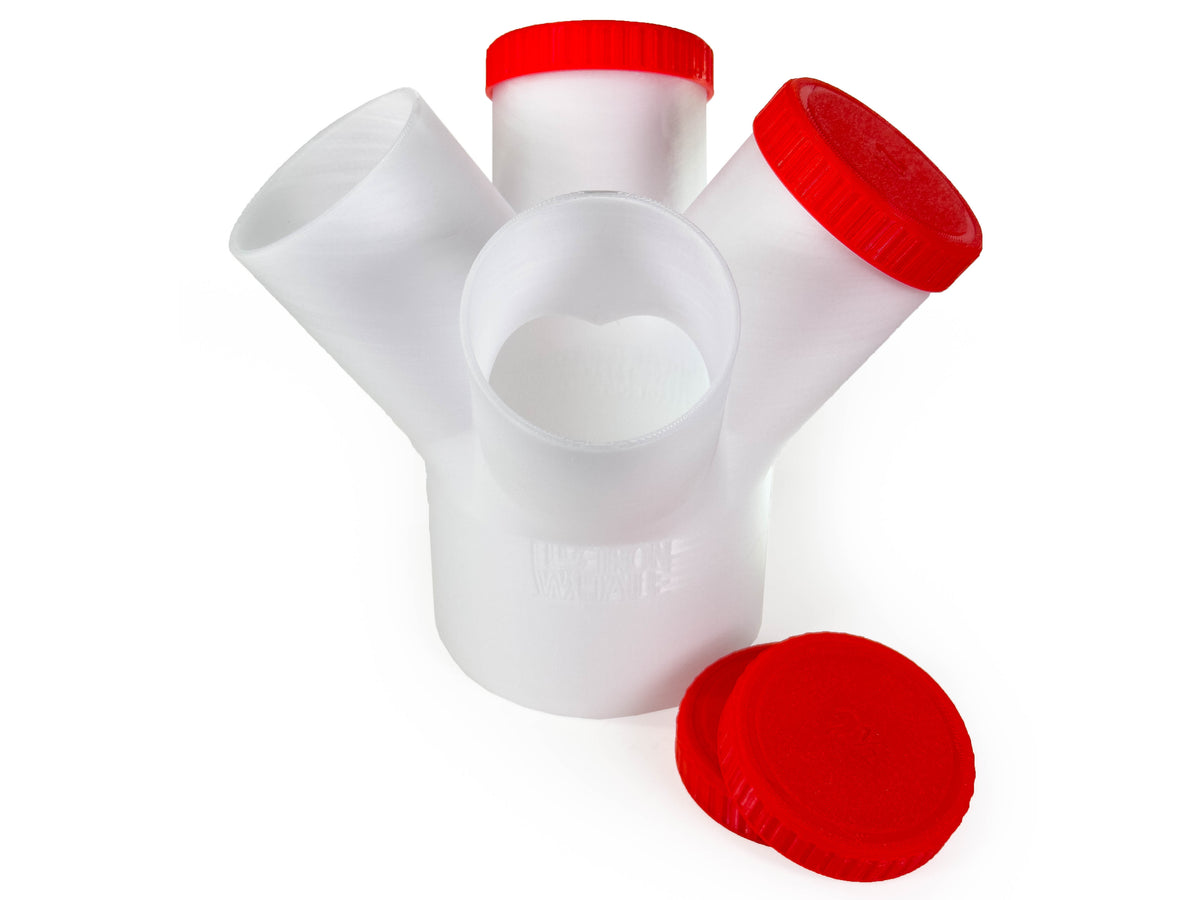

One translucent Dust Medusa four-way splitter body and four caps. Hoses, clamps, blast gates and other adapters are sold separately. Check the space around your chosen hose connections before installation.

Installation

Leave room around the ports for your chosen hoses, clamps and accessories. Caps cover unused ports; they do not switch between connected tools.

Construction and finish

The translucent thermoplastic body is 3D printed with four curved branches and the main connection integrated into one fitting. That shape brings several hose connections together in one part, with a visible printed texture.
