Dust Medusa 4-Way Splitter — 4 to 2-1/2 in, Black

Connect up to four hose runs to one main dust collection line. This black Dust Medusa splitter has one nominal 4-inch connection and four nominal 2-1/2-inch branches. Use the four included caps to cover unused branches. There are no built-in blast gates.

Check the fit

Flexible hoses fit over the ports. Their approximate outside diameters are 4 inches at the main connection and 2.5 inches at each branch. Measure your hose inside diameter and check the connection style before ordering. Branch openings are approximately 2.3 inches inside diameter; compare actual mating dimensions for rigid shop vac cuffs or other fittings. Common size labels alone do not establish a fit. Hoses, clamps, blast gates and additional adapters are sold separately.

What’s included

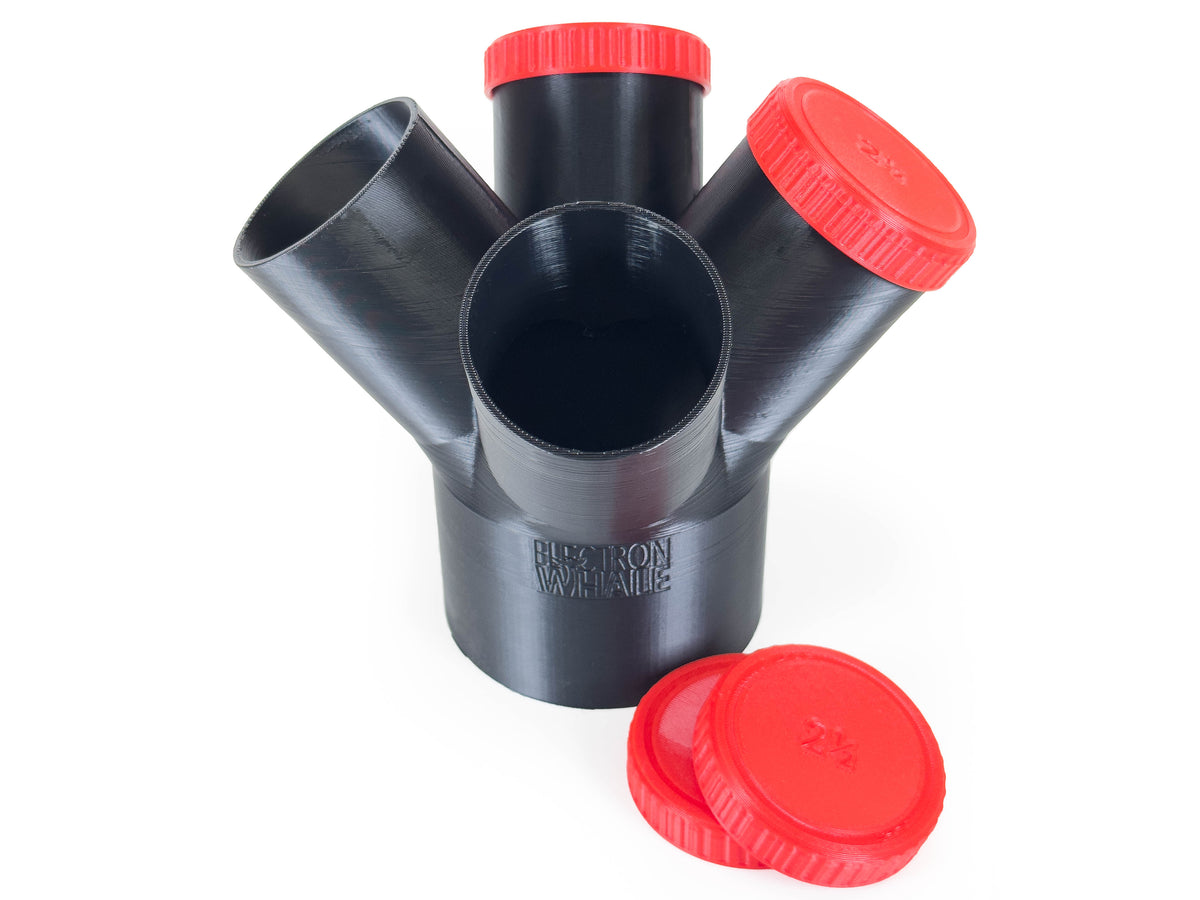

One black Dust Medusa four-way splitter body and four caps. Hoses, clamps, blast gates and other adapters are sold separately. Check the space around your chosen hose connections before installation.

Installation

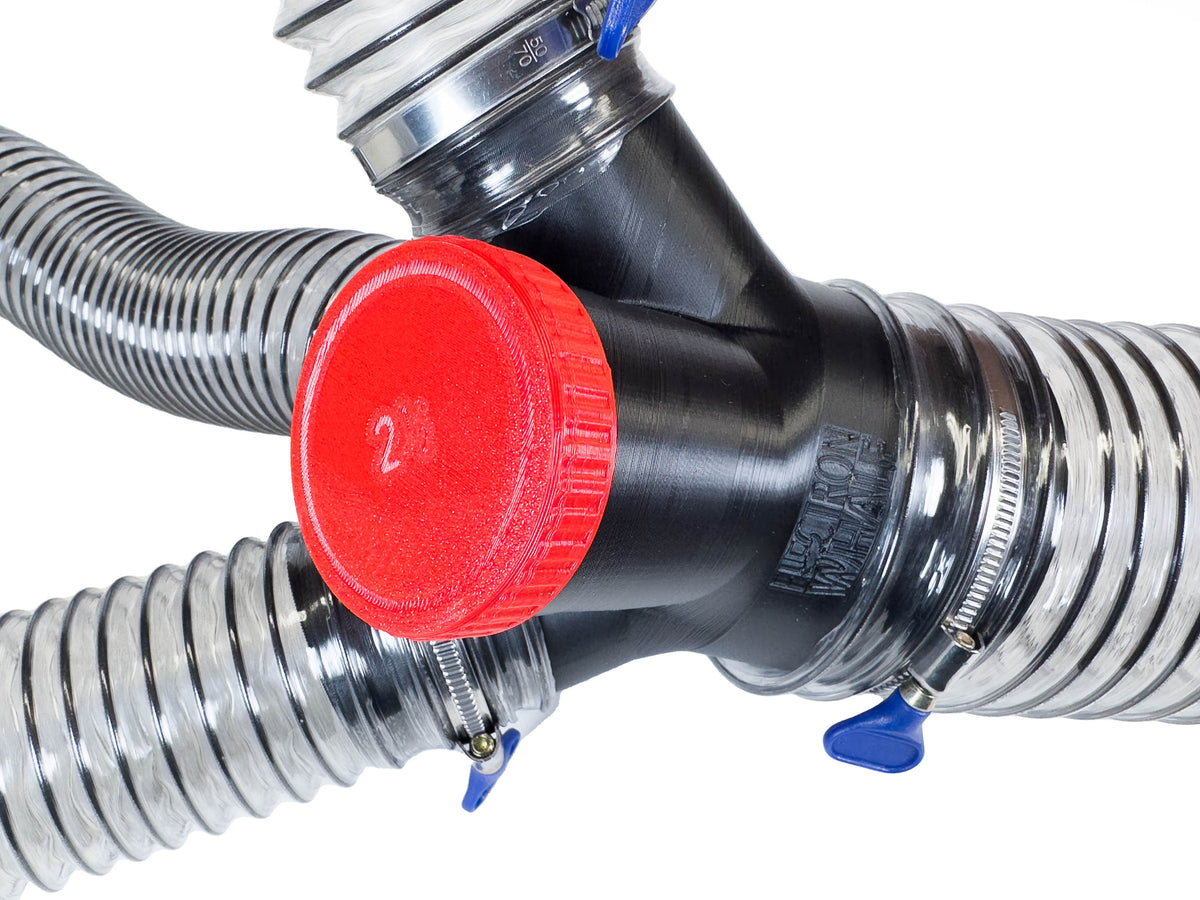

Leave room around the ports for your chosen hoses, clamps and accessories. Caps cover unused ports; they do not switch between connected tools.

Construction and finish

Designed and 3D printed in the USA, the black thermoplastic body combines four curved branches and the main connection in a single fitting. That integrated shape brings several hose runs together, while the visible printed texture makes the construction clear.
